Call Center Supervision on jambonz: Listen, Coach, Barge In

Every contact center eventually needs the same three superpowers. A supervisor who can:

1. Listen to a live call without anyone knowing.
2. Coach an agent through a rough moment without the customer hearing.
3. Barge in and take over when things go sideways.

Add a live transcript of the room and you’ve described the supervision feature set of every serious call-center platform.

jambonz has had the underlying machinery for this for a while (conference member tags, coach mode, mid-call participant actions), and in version 11 we’ve recently added the missing piece: a way to tap a conference’s audio without being a participant. To show how it all fits together, we built a complete, open-source supervision console:

All code for this example application can be found on github.

It’s a real application (React front end, Node backend, live-tested with humans on real phones), but it’s deliberately small and readable, because its main job is to be a reference you can take apart and rebuild into your own product. This post walks through how call center supervision works, the jambonz primitives underneath it, how to run the demo yourself, and some suggestions on how you might adapt it for your own needs.

What Does the Call Supervisor App Do?

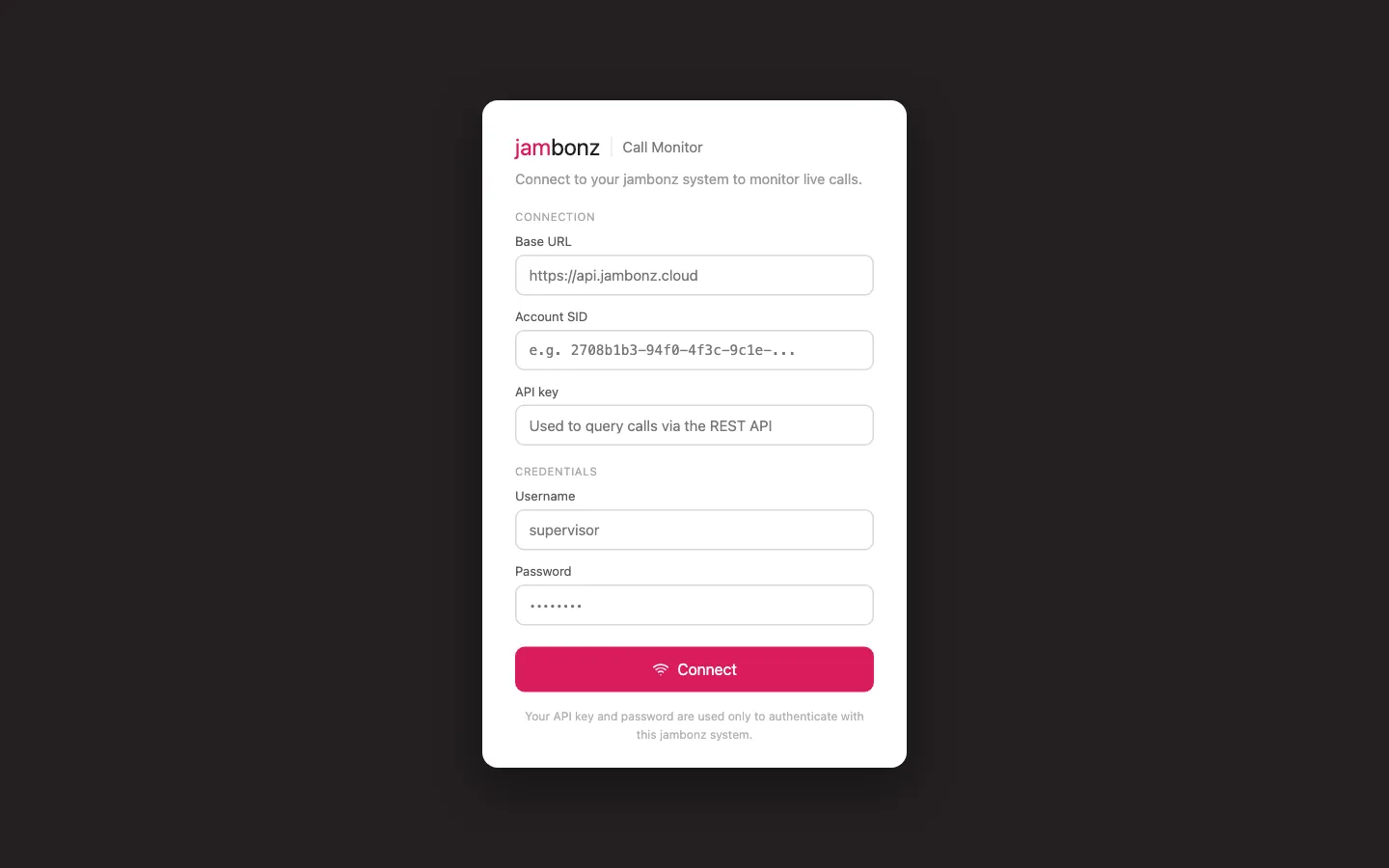

A supervisor signs in and sees every live room (conference) associated with a jambonz account, updating in real time: room names, running durations, and a participant breakdown that distinguishes agents from everyone else.

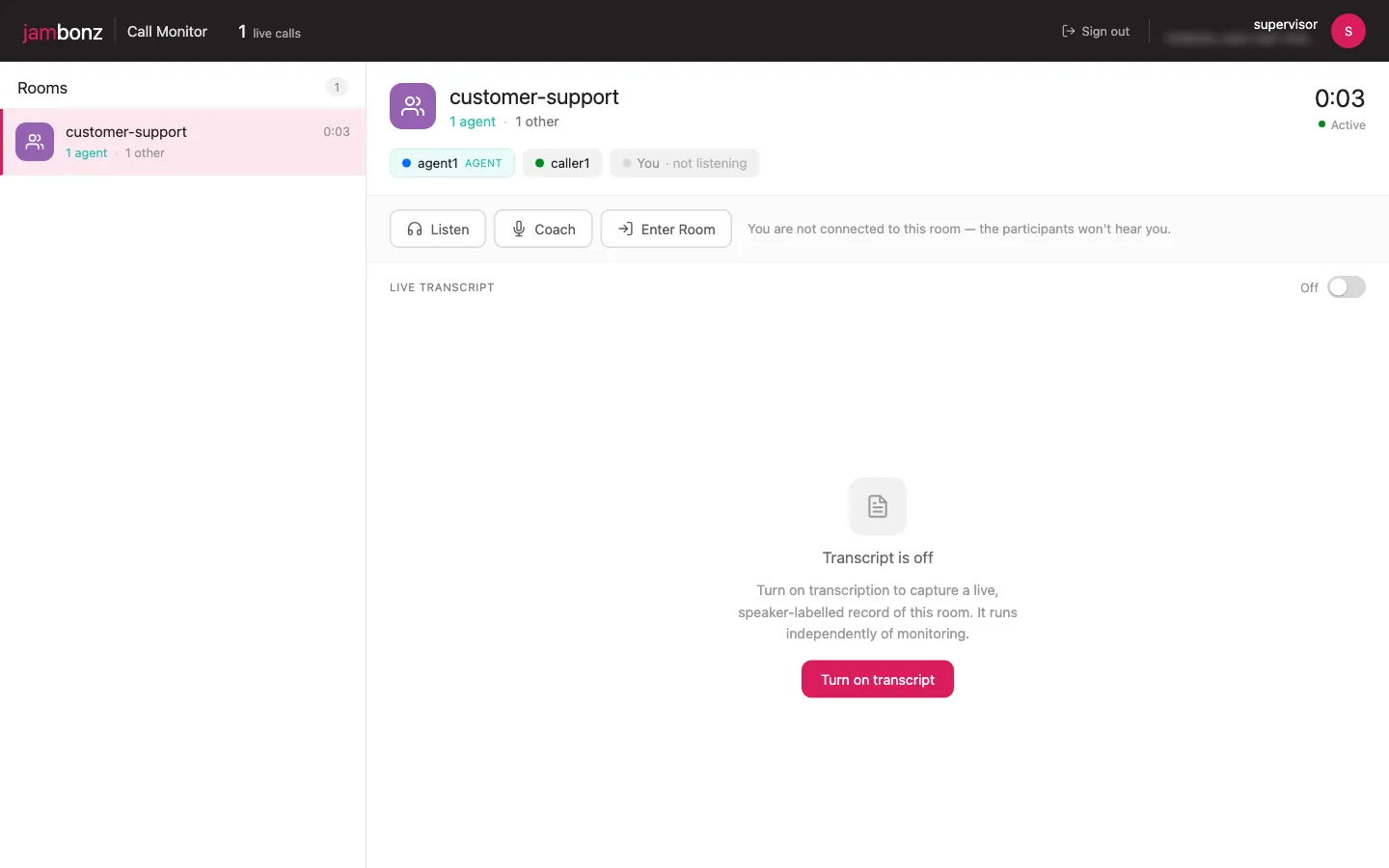

Selecting a room shows its participants as chips (caller ID when available, the bare number otherwise, with agents visibly tagged) and three engagement buttons:

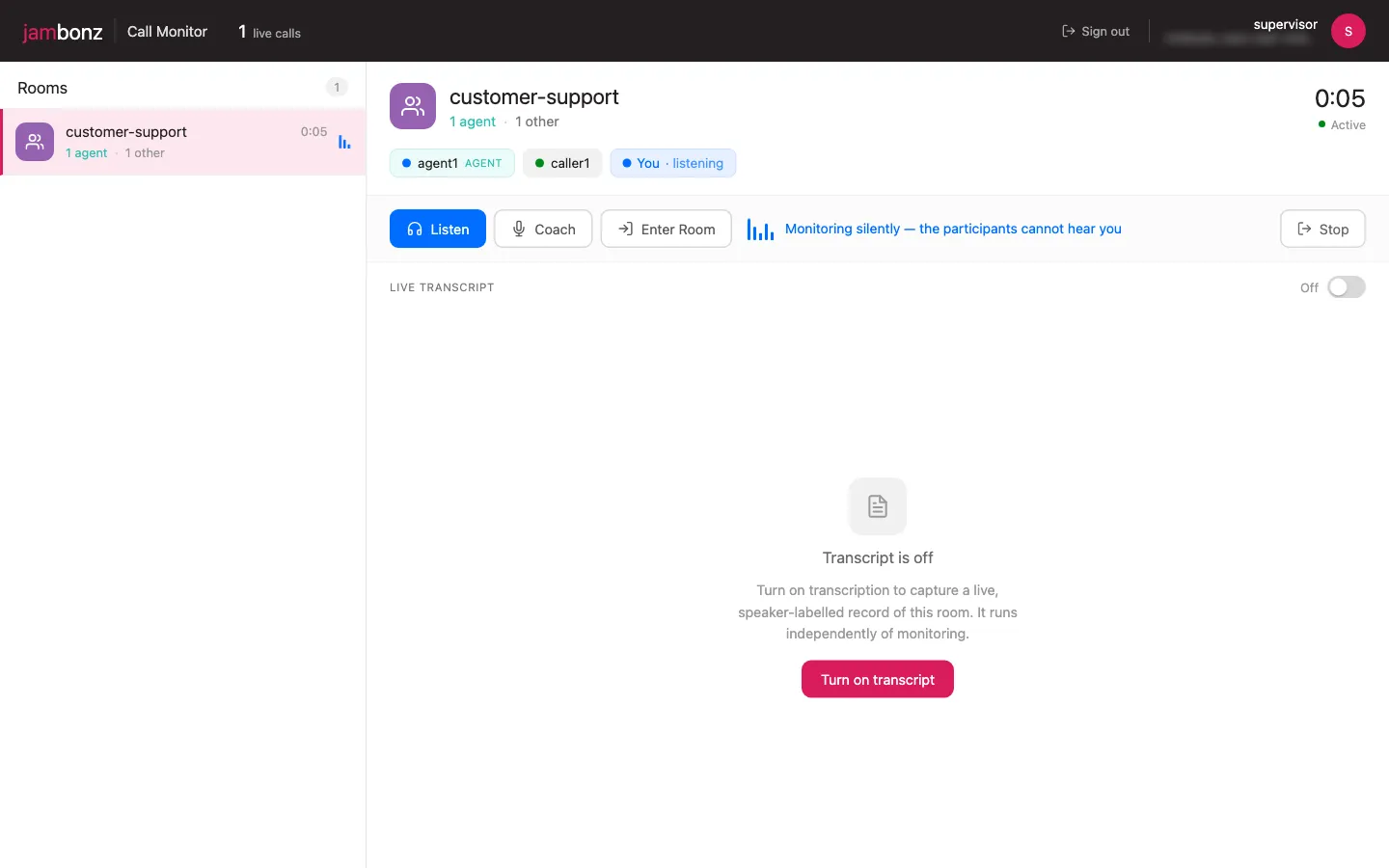

• Listen: the supervisor hears everything; nobody hears the supervisor. The supervisor never appears as a participant, and the counts don’t change.

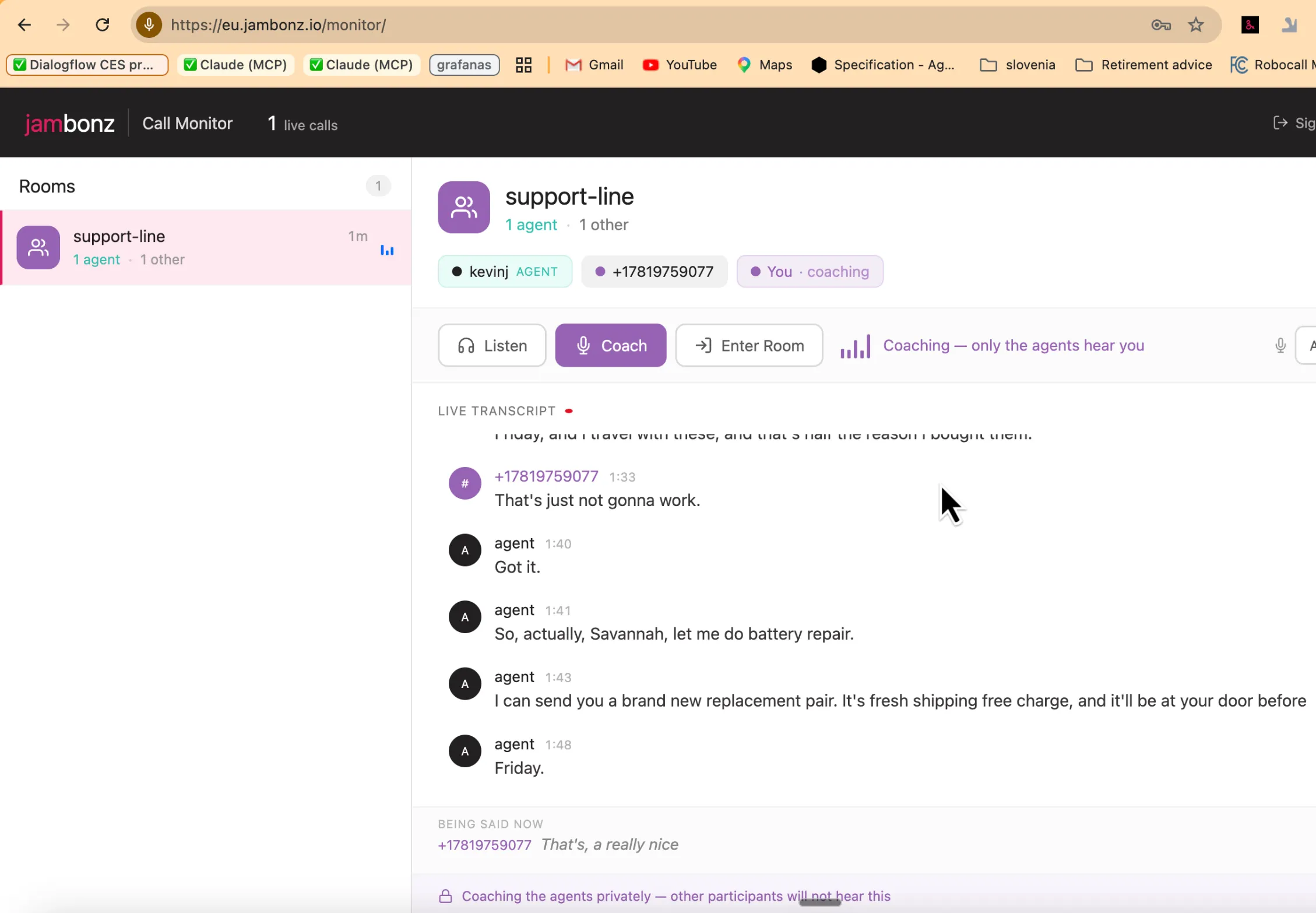

• Coach: the supervisor’s audio is delivered only to the agents in the room. The customer hears nothing. The button only appears when the room actually contains an agent, and if the last agent hangs up mid-coaching, the console automatically falls back to listening.

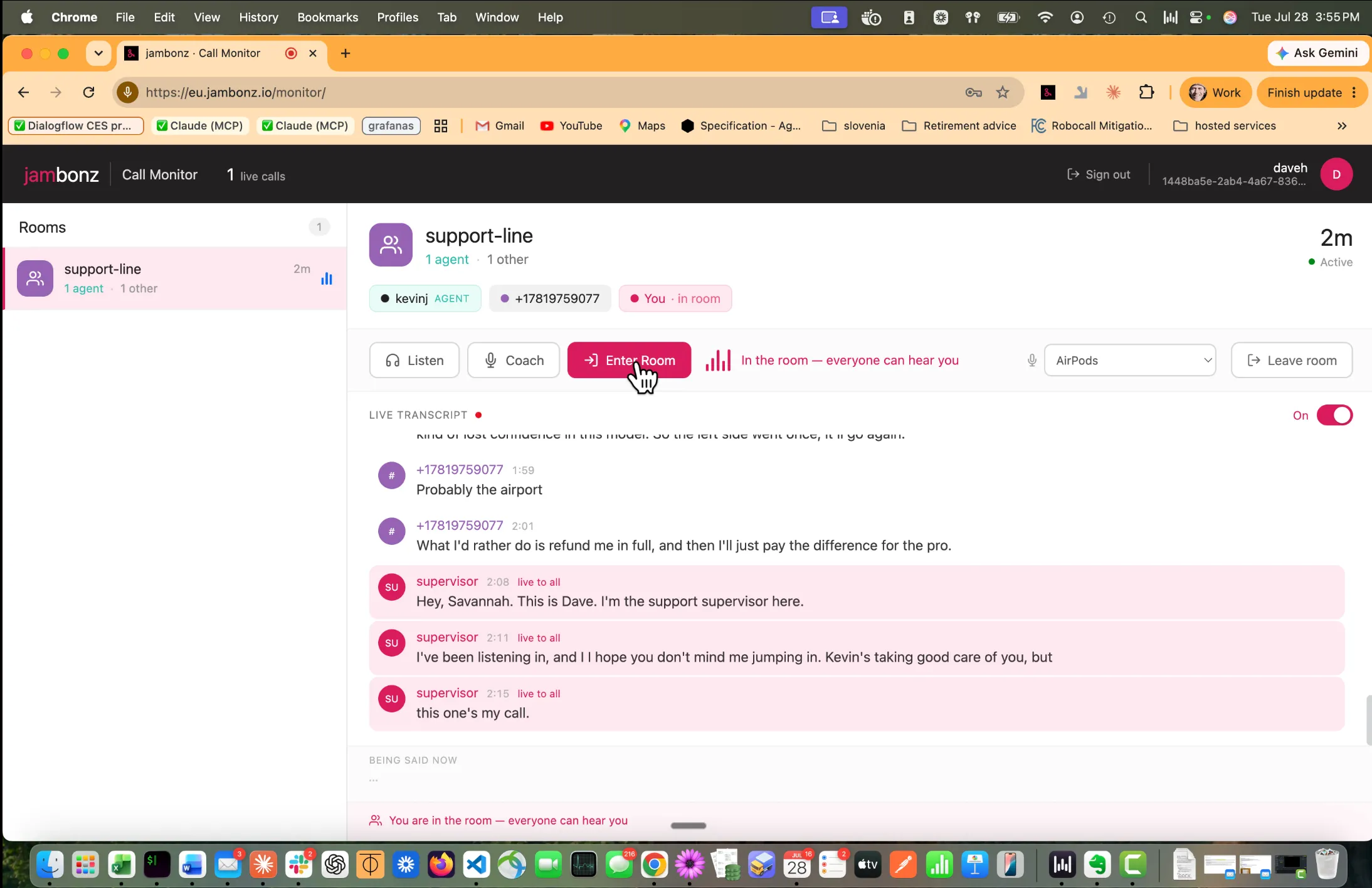

• Enter Room: full barge-in; everyone hears the supervisor.

Switching between these modes is instant. There is no re-dial or interruption to the room. Under the hood the supervisor holds exactly one call leg, and each mode change is a mid-call command on it.

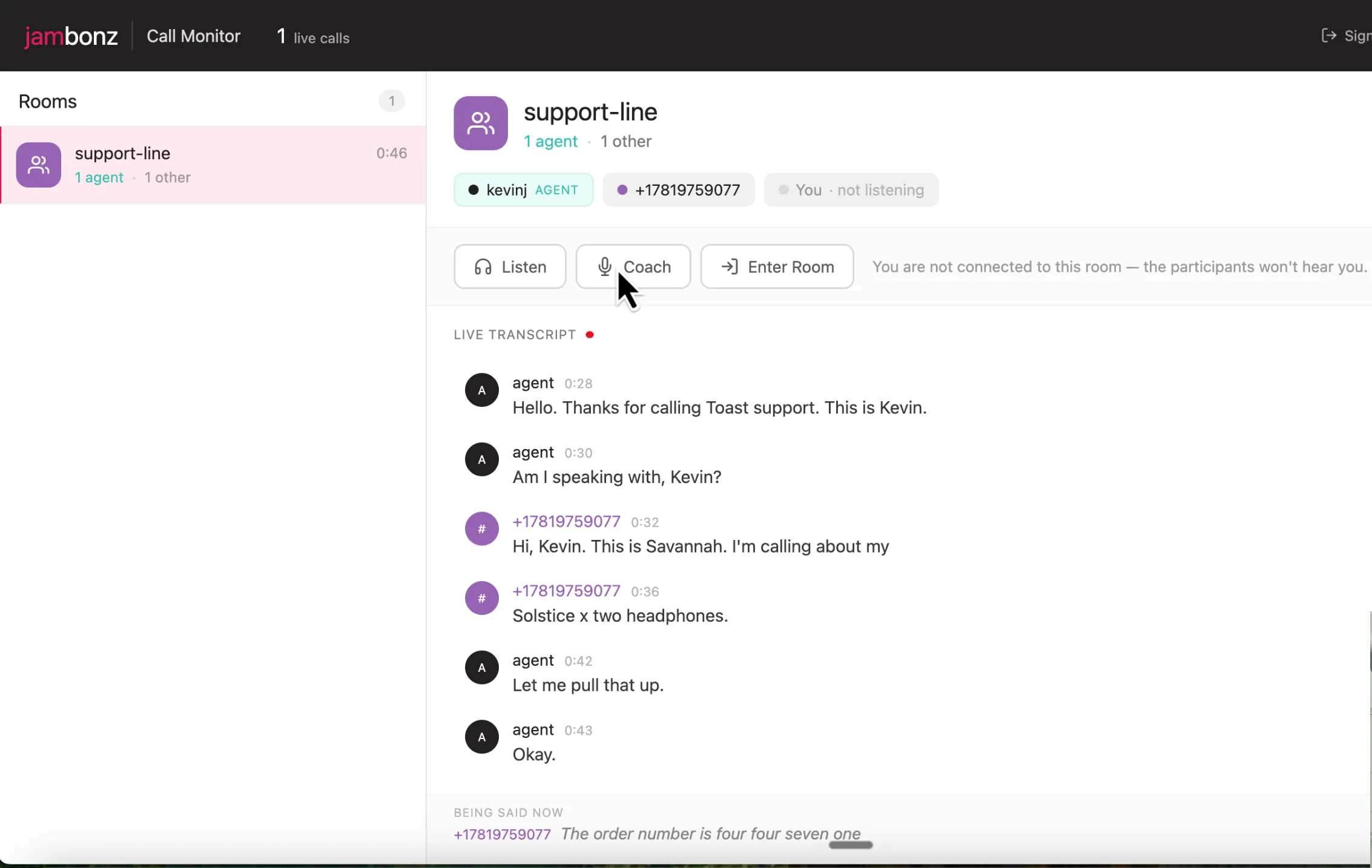

Then there’s the live transcript: per-room, on-demand, and labelled with who is speaking. “Agent” for anyone carrying the agent tag, the caller’s phone number for everyone else, “supervisor” for the supervisor’s own barge-in.

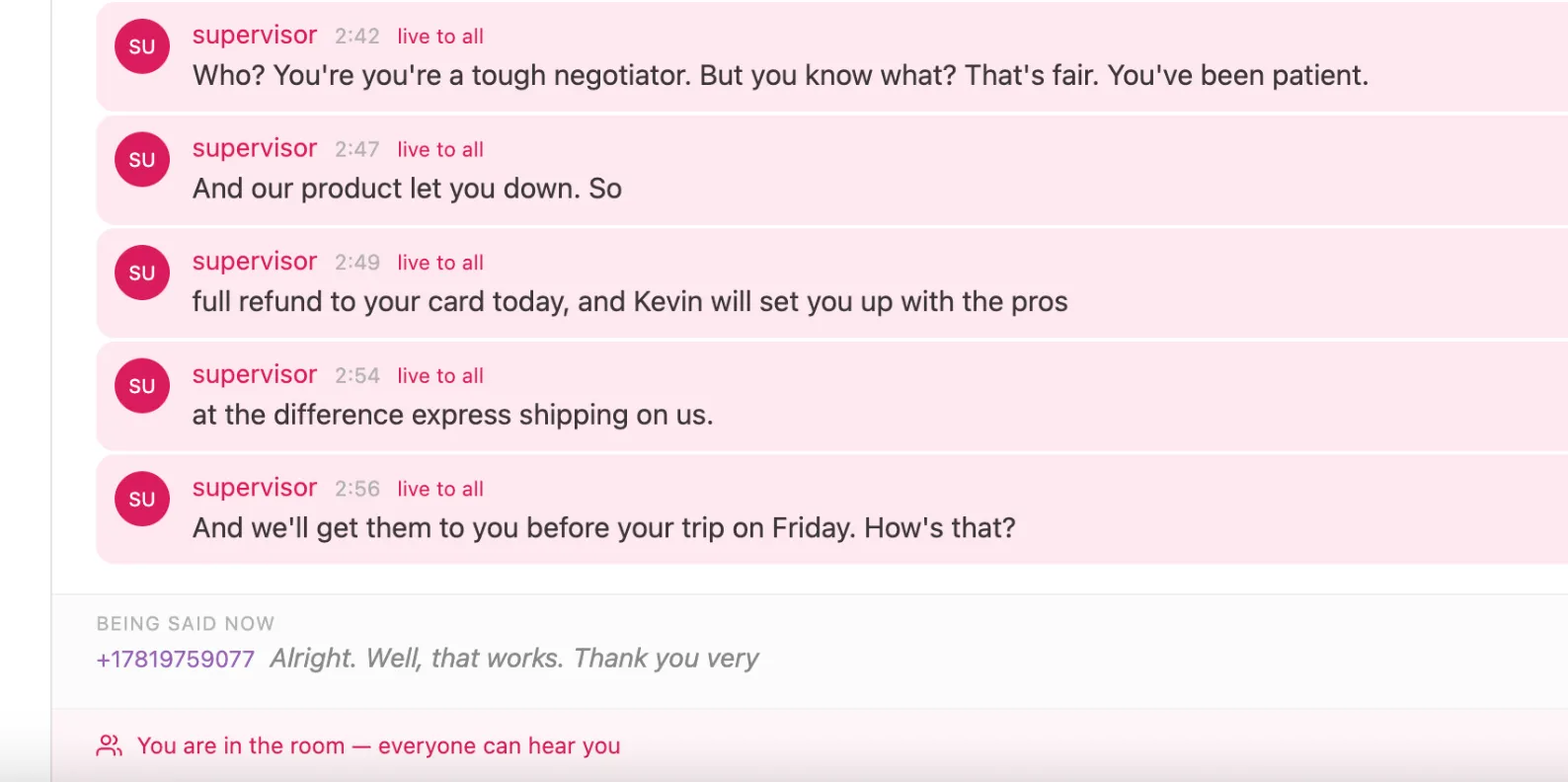

Words appear in a “being said now” pane while they are still being spoken, then settle into the record above when they are finalized.

Note: We used Deepgram Nova-3 for the speech recognition because in our testing it provided the best latency of any STT vendor.

Listening and transcribing are independent features; you can transcribe the conversation in a room in real time, whether or not you have joined it or are even listening to it.

How Call Center Supervision Works

The operation is based on a simple concept of tags. Each participant can optionally be assigned one or more tags, and a tag is nothing more than a simple string value you can assign to the participant. In our application, we assign the tag value ‘agent’ to participants that are agents. Participants that are customers do not receive a tag.

The second piece of this is the optional property speakOnlyTo that can be assigned to a participant. If assigned, the value is used to direct that participant’s audio only to the subset of participants in the room that have been assigned a tag of the same value. Thus, when a supervisor joins in coach mode, we simply set his or her speak-only-to property to ‘agent’.

It’s that simple. What’s even better is that these tags, and the speakOnlyTo property, can be dynamically changed or unassigned at any point in time via the jambonz SDK, and media flows will automatically and immediately adjust accordingly.

Call Center Supervision in Action

When an agent is joining a conference room, we simply include their tag on the conference verb:

session.conference({
  name: 'customer-support',
  memberTag: 'agent',
}).send();

Or if we wanted to assign a tag to a participant already in the conference, or remove a tag, we can use the injectCommand API to do so:

// the application controlling the leg:
session.injectCommand('conf:participant-action', { action: 'tag', tag: 'agent' });
session.injectCommand('conf:participant-action', { action: 'untag' });

// or from anywhere, via the REST client:
await client.calls.update(callSid, {
  conferenceParticipantAction: { action: 'tag', tag: 'agent' },
});

One Leg, Three Modes of Supervision

The supervisor joins as a normal (but muted, tagged, and deliberately non-room-owning) member:

session
  .answer()
  .conference({
    name: roomName,
    joinMuted: true,               // hears everything, heard by no one
    memberTag: 'supervisor',       // lets the room list filter this leg out
    startConferenceOnEnter: false, // never create/destroy the room being watched
    endConferenceOnExit: false,
  })
  .send();

Mode changes are then just participant actions on that live leg:

// coach: audio delivered only to members tagged 'agent'
session.injectCommand('conf:participant-action', { action: 'coach', tag: 'agent' });
session.injectCommand('conf:mute-status', { conf_mute_status: 'unmute' });

// barge-in: heard by everyone
session.injectCommand('conf:participant-action', { action: 'uncoach' });

// back to silent monitoring
session.injectCommand('conf:mute-status', { conf_mute_status: 'mute' });

Note: the same actions exist over REST (PUT /Accounts/{sid}/Calls/{call_sid})

Tapping the room’s audio

The newest primitive is the conference listen fork, the thing that makes the transcript possible without the supervisor being connected:

curl -X POST "$BASE_URL/v1/Accounts/$ACCOUNT_SID/Conferences/customer-support/listen" \
  -H "Authorization: Bearer $API_KEY" -H "Content-Type: application/json" \
  -d '{"url": "wss://your-host/fork", "sampleRate": 16000,
       "metadata": {"room": "customer-support", "sampleRate": 16000}}'

jambonz dials out to your WebSocket and streams the room’s mixed audio as L16 PCM. In the example app, what sits on the other end of that socket is code that streams the audio to Deepgram for real-time transcription, but equally you could replace with your own STT, a sentiment engine, compliance phrase detection, or a recorder etc.

One Stream Per Speaker

The simple stream of mixed audio from the room is the right tap for recording a call, but it is the wrong tap for knowing who said what. Here you have two options:

• diarize the single mixed audio stream and have your STT try to identify speakers, or
• instruct jambonz instead to have you a separate stream per participant.

In our testing, the diarization was not 100% reliable so we implemented the second approach: receiving a separate audio stream per participant and applying real-time transcription to each participant, then combining them in the transcript window.

curl -X POST "$BASE_URL/v1/Accounts/$ACCOUNT_SID/Conferences/support-line/listen" \
  -H "Authorization: Bearer $API_KEY" -H "Content-Type: application/json" \
  -d '{"url": "wss://your-host/fork", "scope": "members", "sampleRate": 16000}'

With scope: "members" the media server opens one WebSocket per participant and streams only that participant’s own audio down it. Each stream announces itself in its first text frame:

{ "room": "support-line", "memberId": 4, "callSid": "…",
  "accountSid": "…", "tag": "agent", "sampleRate": 16000 }

Participants who join after the conference starts are forked automatically; each fork is closed gracefully when its participant leaves the room.

Note that coached audio is never delivered over a websocket to the app, so private coaching cannot leak into a transcription or recording tap.

(These endpoints ship with jambonz version 11 conferencing. They’re on jambonz.cloud today. The full API reference is on docs.jambonz.org.)

Discovering Rooms

GET /Accounts/{sid}/Conferences?expand=participants
→ [{ id, name, durationSec,
     participants: [{ call_sid, label, number, direction,
                      memberTag, isAgent }] }]

The application uses the REST API above to build the console’s room list, and it’s how your own tooling can answer “which live calls have no agent yet?” in one request. number is the remote party (who called in, or who you dialed) which is what the transcript uses to label a participant who isn’t an agent.

The Architecture of Call Center Supervision, in Two Pipelines

The app splits cleanly into two independent flows that share nothing but a room’s name:

Supervisor media + control                    Transcription
──────────────────────────                    ─────────────
Browser (WebRTC SDK)                          Backend ──REST──▶ jambonz
  │ SIP over WebSocket                                            │
  ▼                                                               ▼
jambonz SBC ──▶ supervisor leg in conference       media server forks each member
  ▲                                                               │
  │ conf:participant-action (coach/uncoach/mute)                  │ one L16 stream
  └── injected by the backend over the leg's ws session           │ per participant
                                                                  ▼
                                              Backend WS sink ──▶ one STT session each
                                                                  │ (diarization off)
                                                                  ▼
                                                  lines labelled from stream identity,
                                                  ordered by when they were spoken

The browser talks to the backend over a small typed WebSocket contract (four message types each way), places its media leg with the jambonz WebRTC SDK, routed straight to the application via an X-Application-Sid header, no dial plan needed, and never sees a call_sid or an API key doing anything sensitive.

Making a Live Transcript Feel Live

Two problems that came up as we tested with real conversations:

Finals arrive late: A speech-to-text engine emits a finished line after it decides the utterance has ended, which measured at a median 2.35 s (p90 4.0 s) from when the person started speaking. So the console publishes interim results too — and because each stream has exactly one known speaker, they need no “unattributed” limbo: they appear immediately, correctly labelled, in a “being said now” pane pinned below the transcript, then vanish as the finished line settles into the record above. Text becomes visible a median 1.27 s earlier that way, and the settled transcript never reflows while you are reading it.

Per-speaker streams finish out of order: Each participant has an independent STT session, so a long utterance that started first can be finalised after a short one that started later. Appending in arrival order puts the conversation out of sequence — a reply above the thing it replies to. Every line therefore carries the wall-clock time its speech began (derived from the engine’s word-level offsets), and the console inserts by that, not by arrival.

End-to-End Testing With Scripted Audio

The repo ships a closed-loop end-to-end test (tools/e2e/) that launches three headless Chromium instances whose microphones are scripted WAV files (Chromium’s --use-file-for-fake-audio-capture). An “agent” browser and a “caller” browser join a room and talk; a “supervisor” browser drives the console. Then the test uses the transcript as an audio oracle: the room’s transcription fork hears whatever the room mix contains, so:

• the caller’s scripted words appearing in the transcript proves the entire audio path (browser → SBC → media server mix → fork → STT) end to end;
• the supervisor’s scripted words being absent while coaching (and present after barge-in) proves the coach-privacy contract with no ears involved.

Running the Demo

You need jambonz.cloud or a self-hosted jambonz release 11.0.3 or above, a Deepgram API key for the transcript, and Node 20+. Everything else (provisioning the two applications and the webrtc clients (or just running tools/e2e/provision.mjs), the handful of env vars, and a step-by-step runbook) is in the repo’s DEMO.md.

To populate a room, the simplest thing is to point two phone numbers at the caller application, one arriving as an agent, one as a customer. That app declares two env vars, ROOM_NAME and ROLE (agent or caller), which the portal discovers via OPTIONS and shows on the application screen. Since env vars belong to the application, you create two applications aimed at the same websocket endpoint, give them the same ROOM_NAME, set ROLE=agent on one and ROLE=caller on the other, and route a DID at each. ROLE=agent is the whole difference: it adds memberTag: 'agent' to the conference verb, which is what makes Coach light up. Dial both numbers and you have a live room with a tagged agent and a customer in it. There are no code changes to move them to another room.

Then, with the console watching that room, the one step worth doing with your own ears is Coach: speak, and the agent’s phone hears you while the customer’s does not. If you want to rope in other people, docs/LIVE-TEST.md is a ready-to-send hand-out for a three-person test.

Adapting Room Monitor Into Your Product

This is a sample application that’s intended to be iterated on. The repo’s ADAPTING.md is the full guide; the short version:

Keep the contract, replace everything else: The five primitives in the table above are the stable surface. The React UI, the Node backend, the Deepgram integration. All of it is replaceable scaffolding around those five calls.

The one true integration point is tagging: The monitor never decides who an agent is; it reads memberTag. Wherever your existing call flow puts an agent into a conference, add the tag (one property) and this console (or your version of it) lights up. Richer taxonomies work too: speakOnlyTo accepts any tag, so “coach only the trainee” or “whisper to the interpreter” are the same mechanism with a different tag.

Swap the audio consumer: The transcription module is ~150 lines of “PCM in → Deepgram → labelled fragments out.” The feed is plain L16 PCM over a WebSocket, so that is where you’d plug in a different STT vendor, AI supervision (sentiment, compliance phrases, auto-summaries, agent-assist), or archival. Choose your scope by what you’re building: members when you need to know who said it (transcripts, agent scoring, real-time assist), mix when you want the room audio as one artifact (recording, a single summariser).

Know the demo shortcuts: The repo is honest about what’s demo-grade: there’s no auth on the browser WebSocket, credentials are typed per-session instead of held server-side, the phone page is a test fixture, room state is polled rather than pushed, and nothing is persisted. ADAPTING.md lists each one with the exact file where the production fix goes.

Using the jambonz MCP Server With AI Coding Assistants

Everything in this post is also wired into the jambonz MCP server. Point Claude Code (or Cursor, or any MCP-capable assistant) at https://mcp-server.jambonz.app/mcp and it can pull guide:conference-monitoring (the supervision patterns as an LLM-ready reference) and the conference-supervision SDK example, a two-file distillation of this app served with full source. Ask your assistant to “build a supervision tool on jambonz” and it has the contract, the code, and the gotchas without you explaining any of it.

The Five Primitives Behind Room Monitor

Supervision features have a reputation for being deep platform magic, something you only get from the big CCaaS vendors. The point of room-monitor is that on jambonz they’re an afternoon of plumbing around five primitives: tag your agents, join one muted leg, flip participant actions on it, fork the room’s audio when you want a transcript, and list conferences with expand=participants.

The code is at github.com/jambonz/room-monitor. MIT-licensed, live-tested, with the architecture doc, the adaptation guide, and the closed-loop test suite included. Take it apart. Build something.
